Recliner Motor Linear Actuator Replacement Model DTSJ-002 made by Ding Tang. If the original motor model is the same. it can be replaced. Application in electric sofa. massage chair and etc. Check Label and also troubleshoot the switch/remote or power supply before ordering a motor.If you have any further questions. please feel free to contact us.
-
Recliner Motor Actuator Replacement Model DTSJ-002 made by Ding Tang
-
If the original motor model is the same. it can be replaced
-
Stroke: 205mm. minimum install dimension: 375mm. max load: 4000N
-
2 Pin Flat Round Power Transformer Connection. 5 Pin Hand Control Plug Connection
-

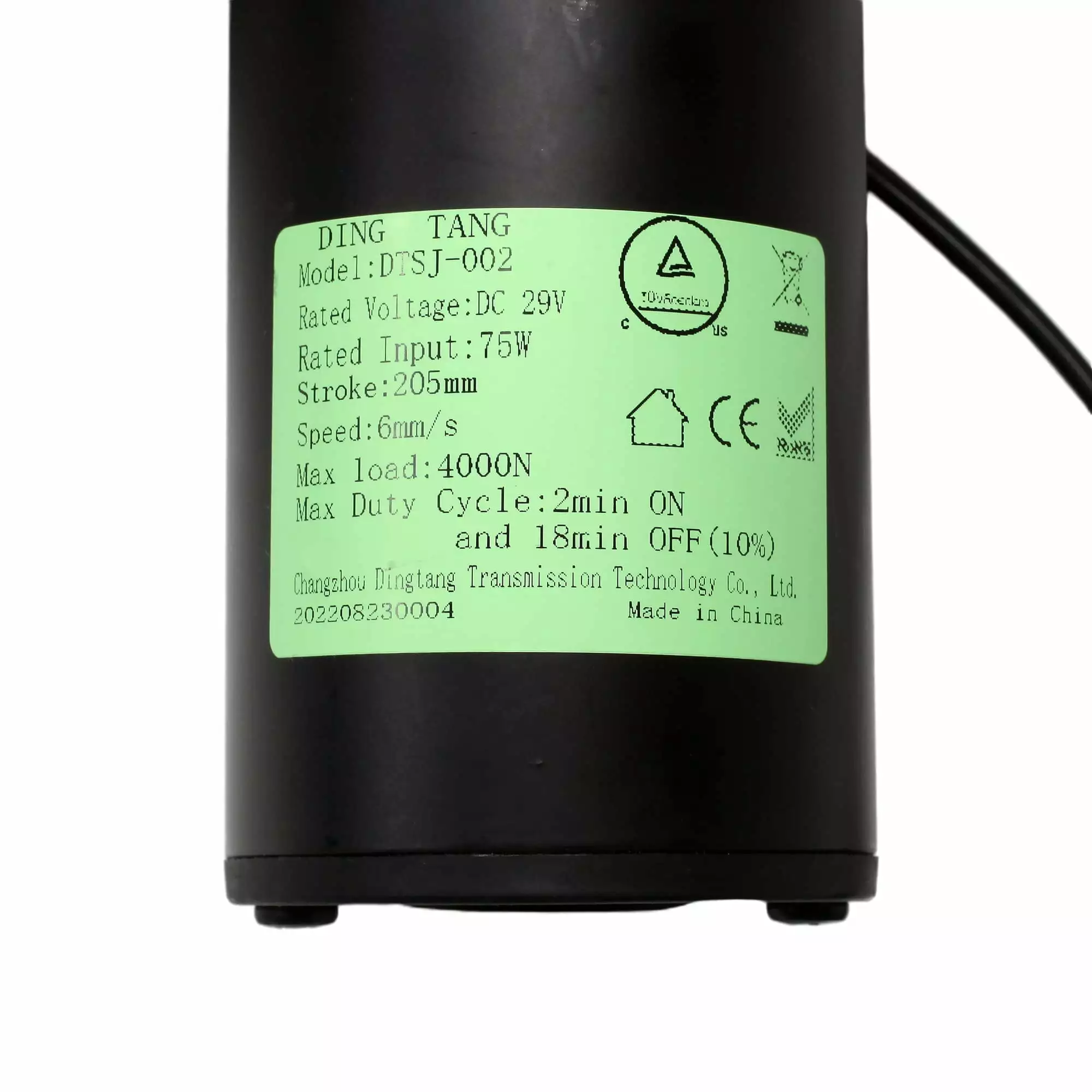

Check Label and also troubleshoot the switch/remote or power supply before ordering a motor
Technical data:
Model: DTSJ-002
Stroke: 205mm
Minimum install dimension: 375mm
Max Load: 4000N
Specifications
| Brand | Ding Tang |
| Color | Black |
| Material | Aluminum |
| Assembled Product Weight | 4.89 lb |
| Seat Depth | 0 in |
| Features | Position Lock |
| Manufacturer | Ding Tang |
| Model | DTSJ-002 |
| Assembled Product Dimensions (L x W x H) | 24.75 x 7.00 x 4.00 Inches |
