Kaidi motor model kdpt007-02 can replace kdpt007-08. kdpt007-52. kdpt005-38. kdpt007-01. kdpt007-179. Power Transformer Connection is 2 Pin Flat Round and control Plug Connection is 5 Pin Hand. Please check your label before ordering.
-

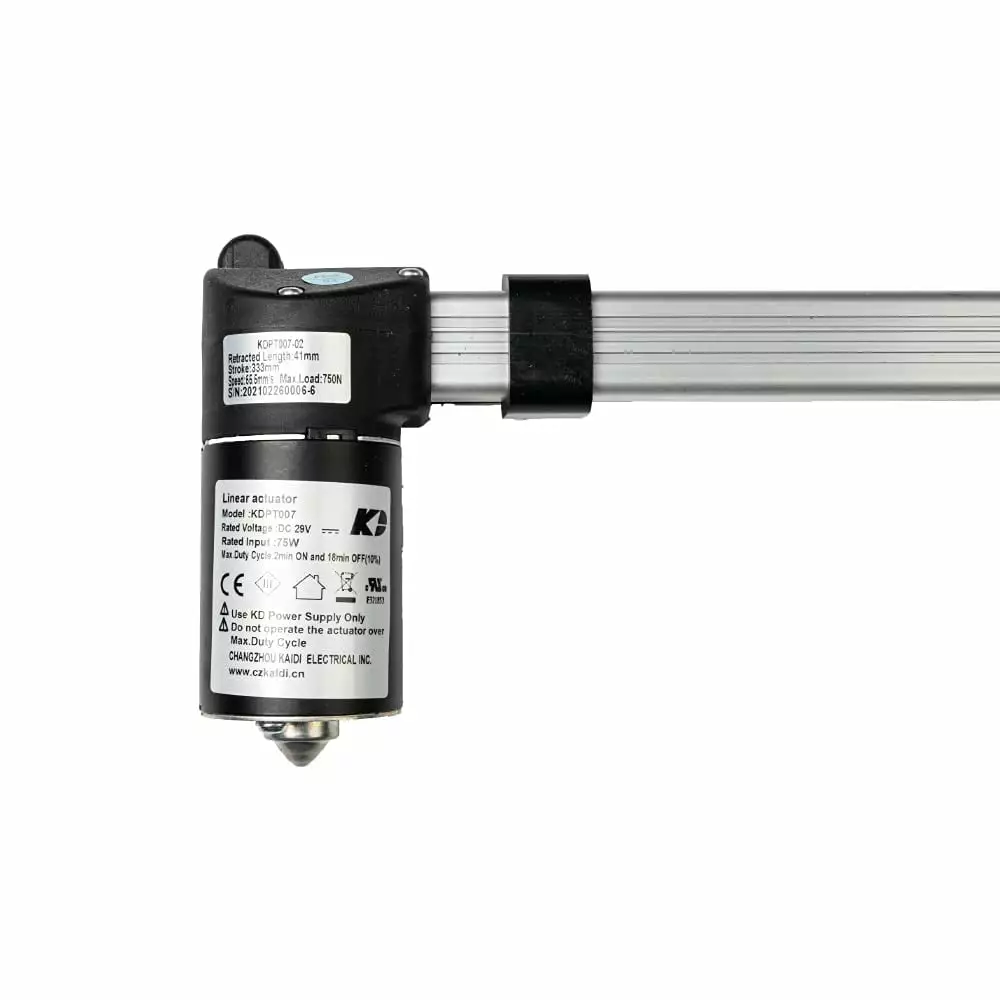

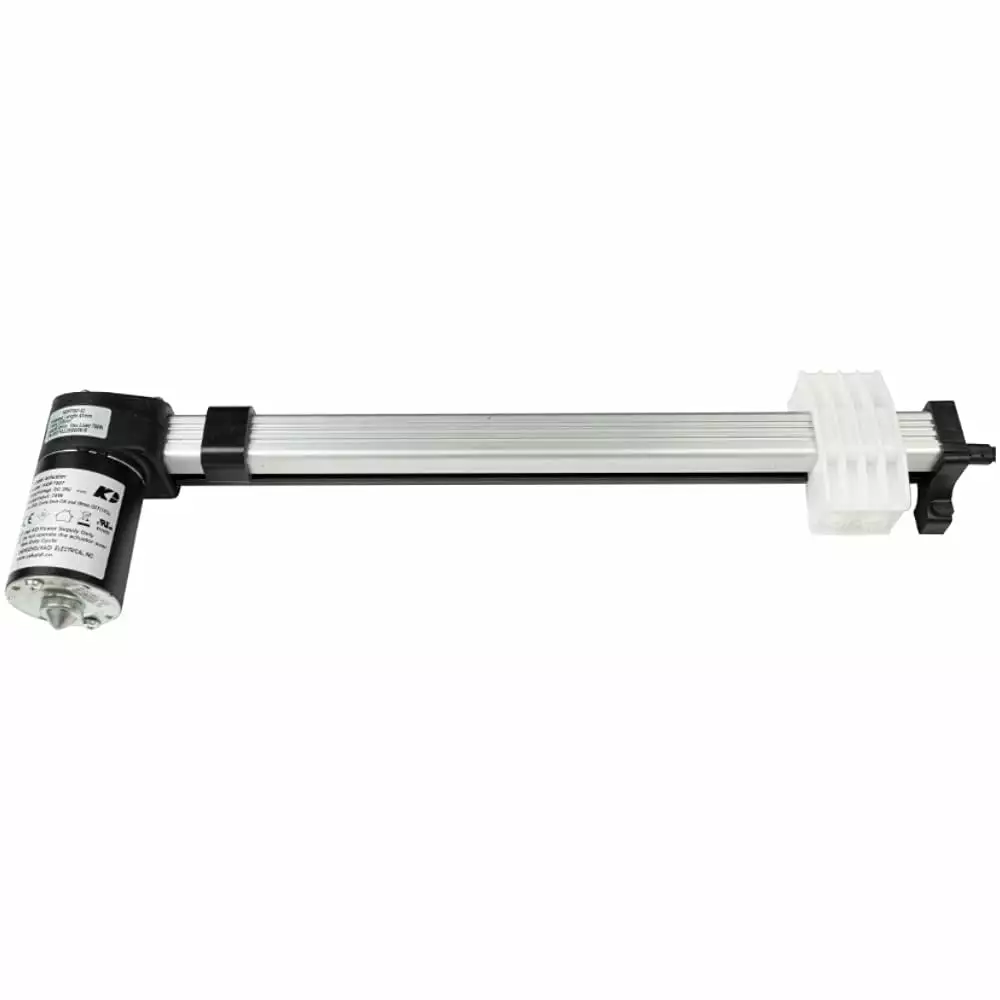

KD Recliner Motor Actuator Replacement Model KDPT007-02 made by Kaidi
-
Total 2 connections. include 2 Pin Flat Round Power Transformer Connection.5 Pin Hand Control Plug Connection
-
Kaidi motor model kdpt007-02 can replace kdpt007-08. kdpt007-52. kdpt005-38. kdpt007-01. kdpt007-179
-
Stroke: 333mm/13.11inches. Minimum install dimension: 139mm/5.47inches
-
Just application in electric sofa. massage chair and seat bed. Check Label and also troubleshoot the switch/remote or power supply before ordering a motor
Technical data:
Model: KDPT007-02
Stroke: 333mm/13.11inches
Minimum install dimension: 139mm/5.47inches
Max. Load: 750N
Speed: 55.5m/s
Input:DC 28V 1.5A
Specifications
| Brand | Kaidi |
| Color | Black&Silver |
| Material | Metal |
| Assembled Product Weight | 5.04 lb |
| Seat Depth | 0 in |
| Manufacturer | Kaidi |
| Model | KDPT007-02 |
| Assembled Product Dimensions (L x W x H) | 24.30 x 6.60 x 3.80 Inches |
