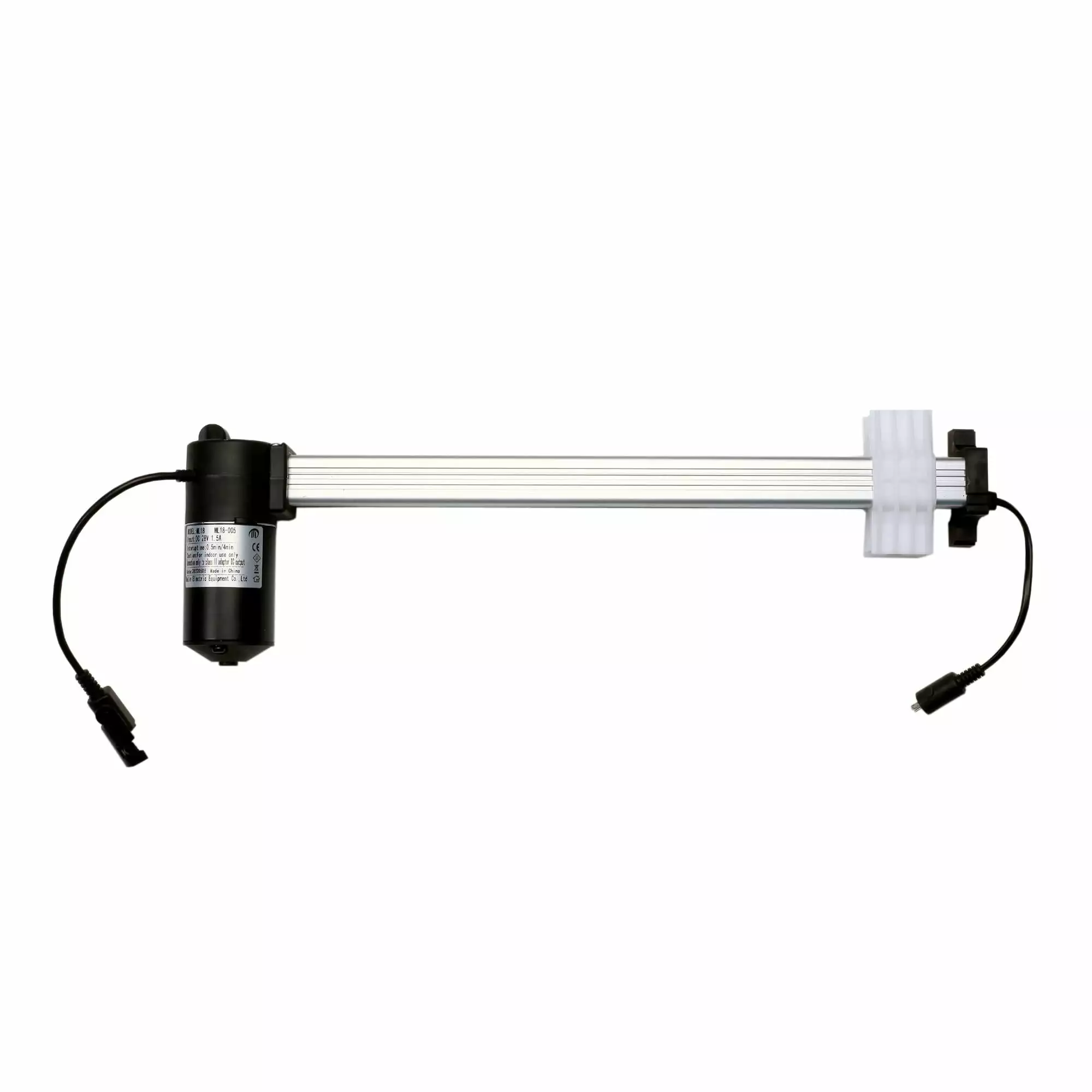

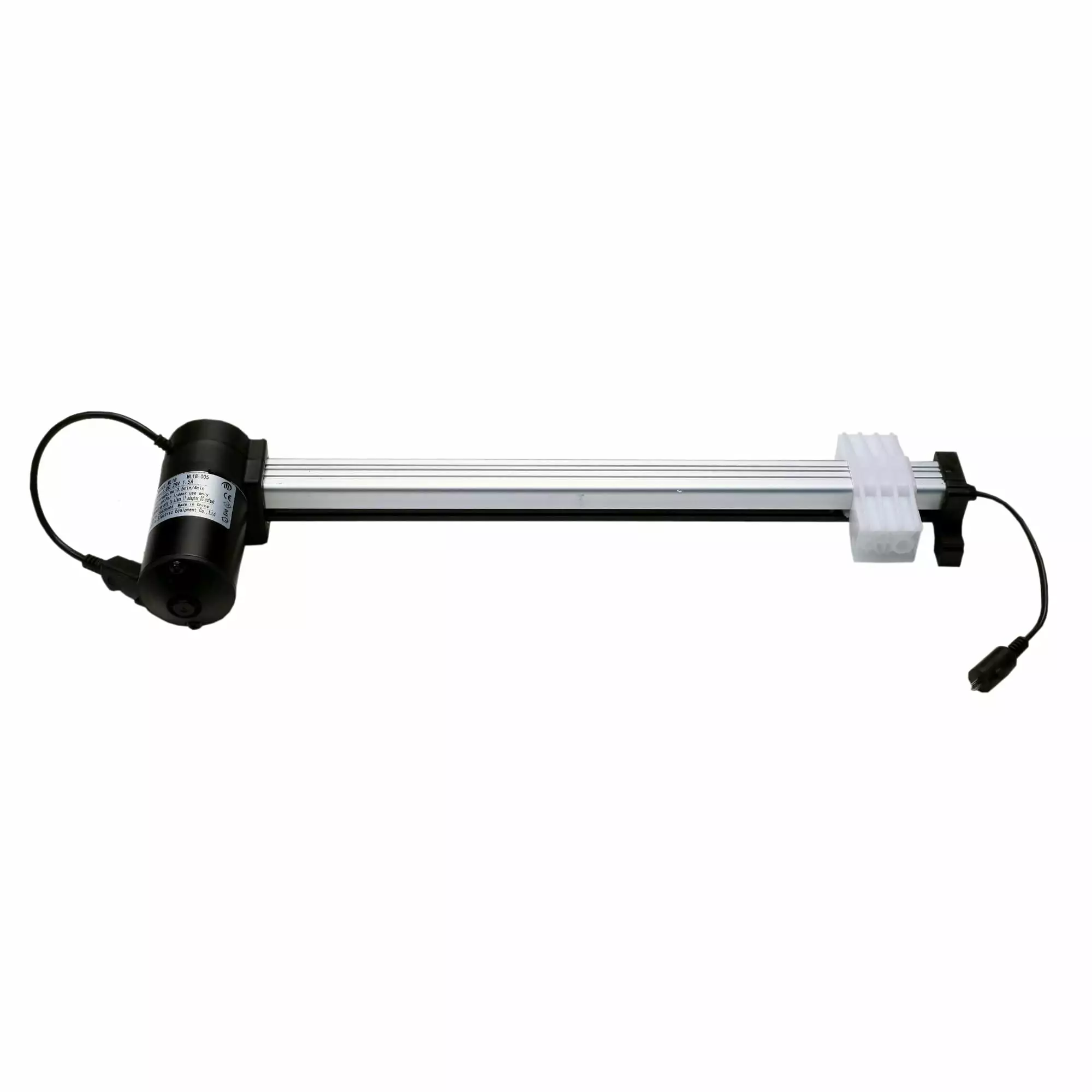

Mulin ML18 ML18-005 Motor Actuator Replacement Kit for Power Recliner Lift Chairs

The motor can replace ML18D06. ML18-005A and ML18D07 motor. Just application in electric sofa. massage chair and seat bed. Check Label and also troubleshoot the switch/remote or power supply before ordering a motor.

• Mulin Recliner Motor Actuator Replacement Model ML18 ML18-005 made by Mulin

• The motor can replace ML18D06. ML18-005A and ML18D07 motor

• Storke: 340mm. Minimum install dimenson: 157mm

• 2 Pin Flat Round Power Transformer Connection and 5 Pin Hand Control Plug Connection

• Application in electric sofa. massage chair and etc. Check Label and also troubleshoot the switch/remote or power supply before ordering a motor




  Technical data:

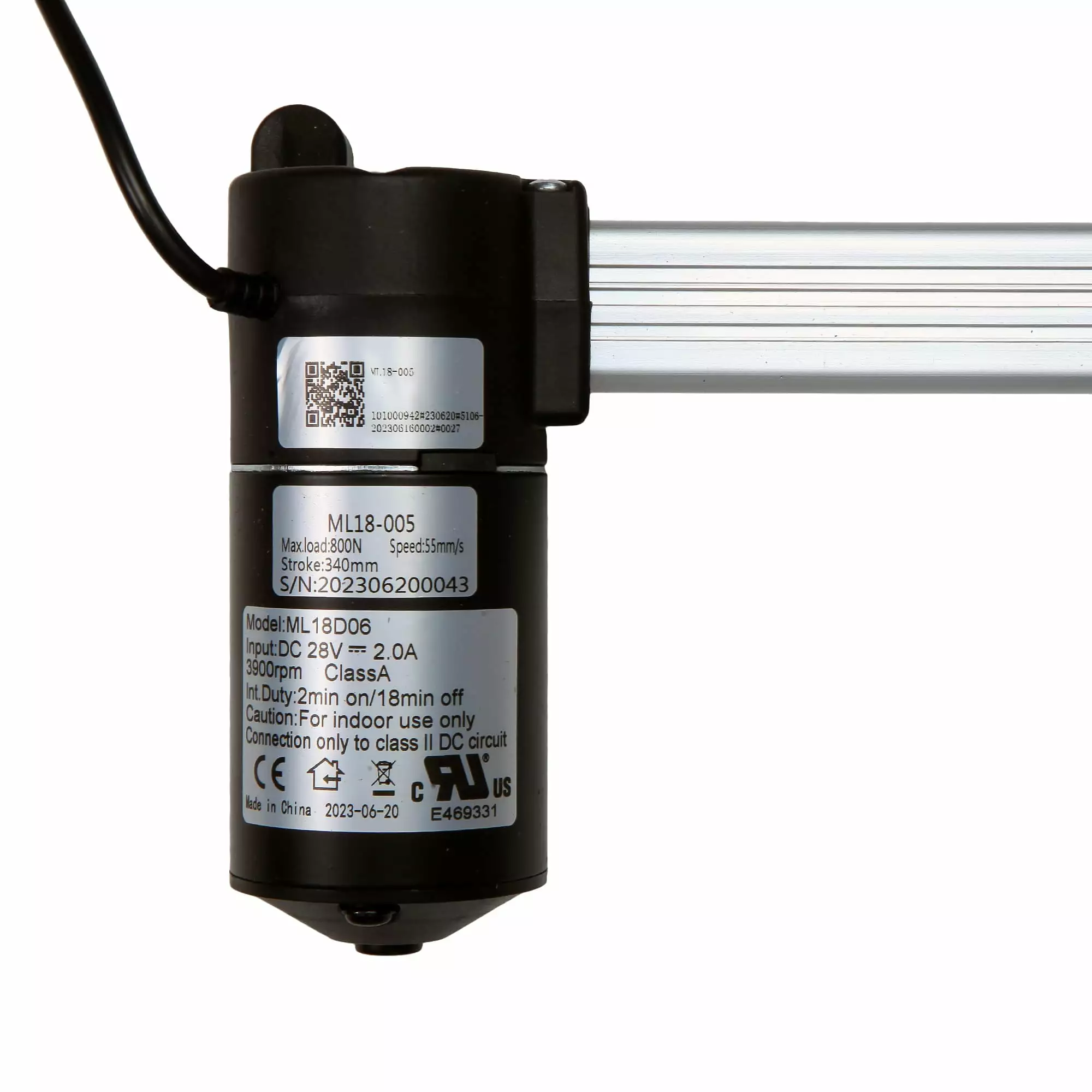

  Model: ML18 ML18-005

  Stroke: 340mm

  Minimum install dimension: 157mm

  Max. Load: 800N



  Package included :

  1x Mulin Recliner Motor Actuator Replacement Model ML18 ML18-005

  1xMulin Round 2 Button 5 Pin Switch Remote Control

  1x Mulin Lift Chair Power Supply Replacement Transformer Kit (Batteries not included)

  1x Mulin 4.26ft US Version AC Cable Cord
